OpenCellLibrary

The OpenCellLibrary is a physical design kit (PDK) for an Integrated Circuit design with the LayoutEditor. It is not intended for real IC fabrication but rather for educational and demontration use. Technology setup and standard cells are based on the OpenCellLibrary published by Nangate. It was modified for adaption to the LayoutEditor and to make it more realistic to a real design kit. It has been extended with parametric cells, symbols, design rule check macros, etc. to make it a complete PDK for the LayoutEditor and as a template for any new LayoutEditor PDK. Please read Nangate's copyright on the library before using it outside any educational purpose.

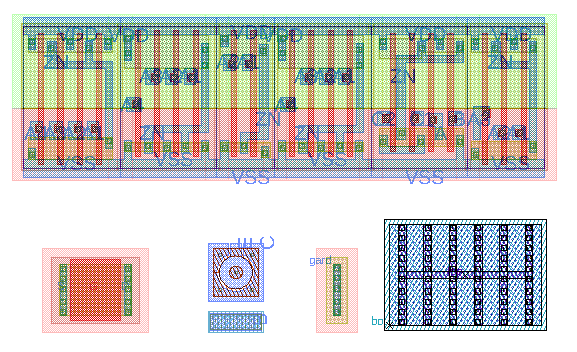

example: open cell library

Setup

The only setup required is a layer setup. This setup is triggered automatically with the use of parametric cells. It is recommended to trigger this setup manually before starting the use the library. This can be done by calling a macro which is located in the main menu under Utilities/Technology/openCellLibrary/layer setup. This setup macro is optimized for the transparent PaintEngine. To switch to this PaintEngine a restart may be required. Add the OpenCellLibrary by hand, if it is not present in the SchematicEditor (AddLibrary). The library is stored in the folder library/openCellLibrary. The exact location is platform dependent.

License

OpenCellLibrary License

The Open Cell Library is intended for use by universities, other research activities, educational programs and Si2.org members. However allowed, the Open Cell Library is not intended for commercial use. If you use the Open Cell Library for demonstration of commercial EDA tools it is required to mention, indicate that the library was developped by Nangate.

If you have questions or concerns then please contact us at openlibrary@nangate.com

The Open Cell Library is provided by Nangate under the following License:

Nangate Open Cell Library License

Version 1.0. February 20, 2008

Permission is hereby granted, free of charge, to any person or organization obtaining a copy of the Open Cell Library and accompanying documentation (the "Library") covered by this license to use, reproduce, display, distribute, execute, and transmit the Library, and to prepare derivative works of the Library, and to permit third-parties to whom the Library is furnished to do so, all subject to the following:

The copyright notices in the Library and this entire statement, including the above license grant, this restriction and the following disclaimer, must be included in all copies of the Library, in whole or in part, and all derivative works of the Library, unless such copies or derivative works are solely in the form of machine-executable object code generated by a source language processor. The library has been generated using a non-optimized open PDK and is not suited for any commercial purpose. Measuring or benchmarking the Library against any other library or standard cell set is prohibited. Any meaningful library benchmarking must be done in collaboration with Nangate or other providers of optimized and production-ready PDKs.

THE LIBRARY IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE AND NON-INFRINGEMENT. IN NO EVENT SHALL THE COPYRIGHT HOLDERS OR ANYONE DISTRIBUTING THE LIBRARY BE LIABLE FOR ANY DAMAGES OR OTHER LIABILITY, WHETHER IN CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE LIBRARY OR THE USE OR OTHER DEALINGS IN THE LIBRARY.
